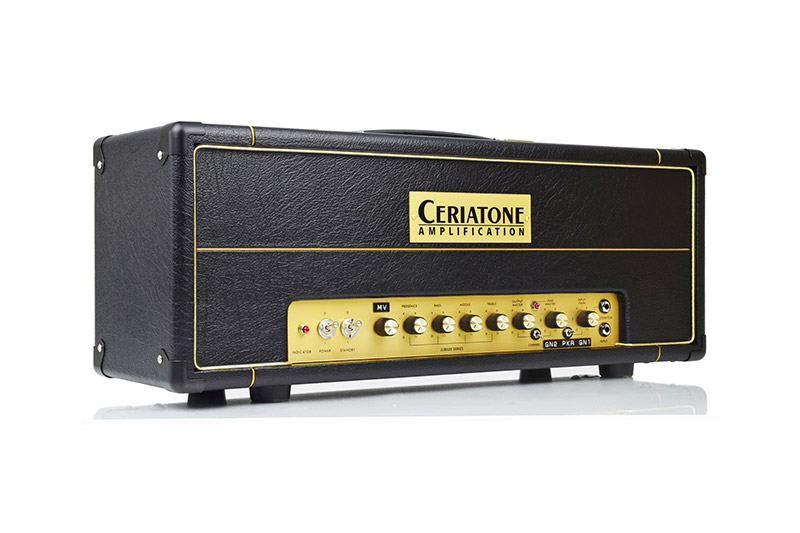

Hot Rodded Plexi AFD #35 50

  • $ 1,515.00

Model Descriptions:

The Ceriatone AFD #35 50 is one of the more uniquely voiced amplifiers in our Hot-Rodded Plexi series.

It doesn’t take a rocket scientist to figure out the top-hatted, cigarette smoking inspiration for this amplifier.  Simply put, the tone on that landmark album helped bring back the rock in rock and roll.  The tone is aggressive, yet sweet and musical.

Although most closely linked with that album in particular, the tones the AFD #35 provides lend it to all sorts of hard rock tones where both great rhythm crunch and stinging leads are required.

Like other Ceriatone amps, we have labored carefully to select the finest components to suit the design, and the AFD #35 uses our specially designed, custom transformers for superior reliability, frequency response, and feel.

Head Dimension : 25.75 x 8.35 x 10.35 inches / Actual Weight : 22 kg

YouTube Video Thumbnail

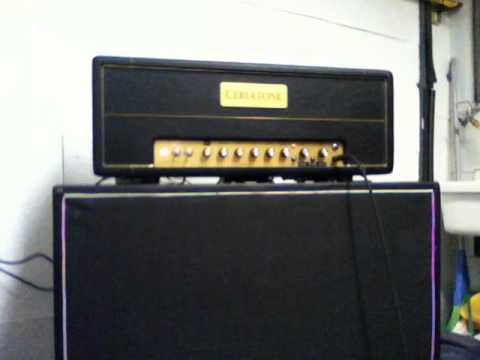

Hot Rodded Plexi AFD #35 50 - Clip 1
YouTube Video Thumbnail
Hot Rodded Plexi AFD #35 50 - Clip 2
YouTube Video Thumbnail

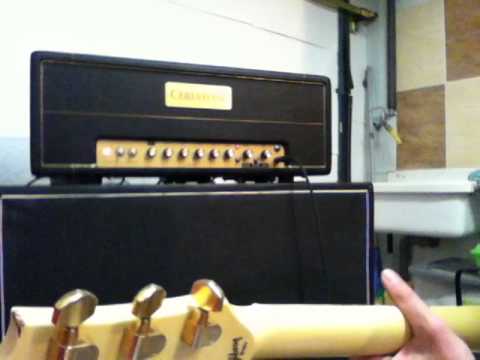

Hot Rodded Plexi AFD #35 50 - Clip 3
YouTube Video Thumbnail
Hot Rodded Plexi AFD #35 50 - Clip 4
Specifications
Power Output
50 Watt
Feature Overview
  • Cascading gain-stages with individual Gain controls
  • 3-way Bright switch on Gain 1 control
  • Internal cathode trimmer to fine-tune texture of distortion
  • Footswitchable Channels
  • Treble, Middle, Bass equalization (shared between channels)
  • Overdrive channel with Drive and Level controls
  • Post-Phase Inverter MV to maintain tone of cranked amp at lower output levels
  • Passive effects loop
  • Full/Half Power switch
  • Tubes
  • Power: 2 x 6550
  • Preamp:  4 x 12AX7/ECC83
  • Rectifier:  Solid State
  • Complete Amp
    Head
    Complete Head Unit
    $ 1,515.00
    24.0 KG
    Full working chassis in head cabinet. Footswitch included.
    Options
    Without tubes
    $ 1,320.00
    24.0 KG
    Full working chassis without tubes in head cabinet Footswitch included.
    Without head cabinet
    $ 1,315.00
    21.0 KG
    Full working chassis without head cabinet. Footswitch included.
    Without head cabinet and tubes
    $ 1,120.00
    21.0 KG
    Full working chassis without tubes and head cabinet. Footswitch included.
    Kits
    AFD #35 50 Kits
    Package 1
    $ 550.00
    8.0 KG
    All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no choke, no tubes and no cabinet. Footswitch included.
    Package 2
    $ 770.00
    21.0 KG
    All components with unassembled board, front plate, rear plate, chassis, OT , PT and choke.  No tubes and no cabinet. Footswitch included
    Package 1 with assembly
    $ 900.00
    8.0 KG
    All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no choke, no tubes and no cabinet. Footswitch included.
    Add-On/Parts
    Board
    Unassembled board
    $ 250.00
    2.5 KG
    Cabinet
    Head
    $ 200.00
    21.0 KG
    Weight is for empty head cabinet only
    Chassis
    Steel
    $ 80.00
    4.0 KG
    Laser Punched Steel, Thickness 1.5 mm
    Faceplate
    Front plate
    $ 30.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Rear plate
    $ 30.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Trannies
    Power & Output Trans & Choke
    $ 220.00
    11.5 KG
    Tubes
    2 x 6550, 4 x 12AX7
    $ 195.00
    3.5 KG
    Documentation
    Layout
    Hot Rodded Plexi AFD #35 50 Watt
    Hot Rodded Plexi AFD #35 50 Watt
    Manual
    Hot Rodded Plexi AFD #35 50 Watt
    Hot Rodded Plexi AFD #35 50 Watt

    Layout

    Hot Rodded Plexi AFD #35 50 Watt

    Manual

    Hot Rodded Plexi AFD #35 50 Watt
