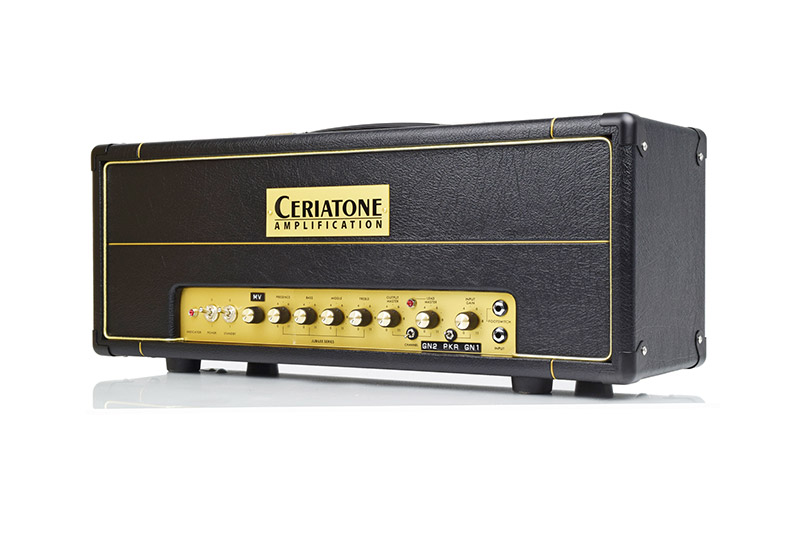

Hot Rodded Plexi AFD #35 100

Specifications

Power Output

100 Watt

Feature Overview

Cascading gain-stages with individual Gain controls

3-way Bright switch on Gain 1 control

Internal cathode trimmer to fine-tune texture of distortion

Foot-switchable Channels

Treble, Middle, Bass equalization (shared between channels)

Overdrive channel with Drive and Level controls

Post-Phase Inverter MV to maintain tone of cranked amp at lower output levels

Passive effects loop

Full/Half Power switch

Tubes

Power: 4 x 6550

Preamp: 4 x 12AX7/ECC83

Rectifier: Solid State

Complete Amp

Head

Complete Head Unit

$ 1,600.00

26.0 KG

Full working chassis in head cabinet. Footswitch included.

Options

Without tubes

$ 1,320.00

26.0 KG

Full working chassis without tubes in head cabinet Footswitch included.

Without head cabinet

$ 1,415.00

21.0 KG

Full working chassis without head cabinet. Footswitch included.

Without head cabinet and tubes

$ 1,135.00

21.0 KG

Full working chassis without tubes and head cabinet. Footswitch included.

Kits

AFD #35 100 Kits

Package 1

$ 570.00

8.0 KG

All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no choke, no tubes and no cabinet.

Package 2

$ 835.00

21.0 KG

All components with unassembled board, front plate, rear plate, chassis, choke, OT and PT. No tubes and no cabinet.

Package 1 with assembly

$ 870.00

8.0 KG

All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no choke, no tubes and no cabinet.

Add-On/Parts

Board

Unassembled board

$ 250.00

2.5 KG

Cabinet

Head

$ 185.00

21.0 KG

Weight is for empty head cabinet only

Chassis

Steel

$ 75.00

4.5 KG

Laser Punched Alum, Thickness 2.0 mm

Faceplate

Front plate

$ 28.00

1.5 KG

Rear plate

$ 28.00

1.5 KG

Trannies

Power & Output Trans & Choke

$ 265.00

13.0 KG

Tubes

4 x 6550, 4 x 12AX7

$ 280.00

3.5 KG
