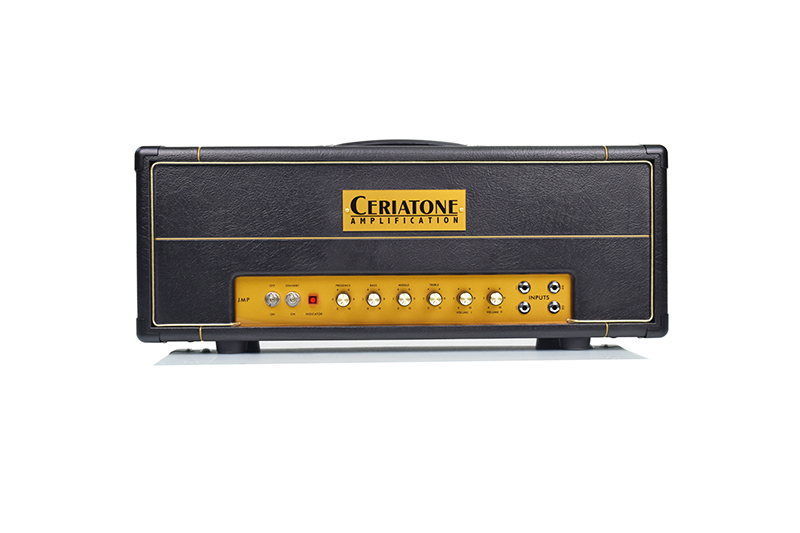

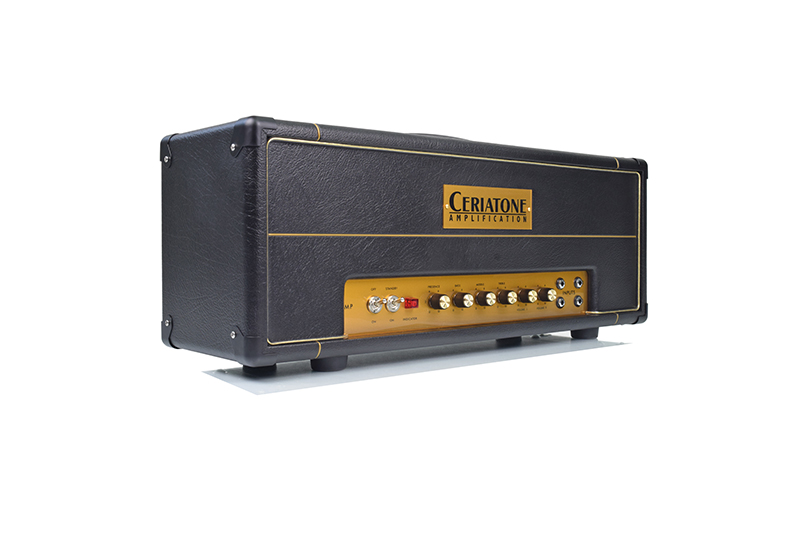

British Style West Coast Mod JH

  • $ 1,750.00

Model Descriptions:

Jimi Hendrix’s tones from his Marshall amps are still some of the most sought after by guitarists today, more than 50 years after his passing.

Over the years, bit by bit of information started surfacing on the Internet, regarding Hendrix’s amps.

One of the biggest breaks came when Dave Weyer, an engineer who worked at West Coast Organ and Amplifier Service back in the 60s and 70s, revealed that he worked on, and modded, many of Hendrix’ amps back then, together with proof and information that are hard to dispute.

One of the mods that he regularly did for Hendrix was using 6550 tubes (instead of EL34s) in the Marshalls, along with mods for both reliability (a big issue at the time especially for extensively touring musicians playing at arena volumes),  as well as tone.

The Ceriatone West Coast Mod Plexi is offered based on some of the information above. Namely, a Super Lead is modified to use 6550 tubes, using custom transformers to run the amp to specs Dave Weyer recommended. The amp was used, amongst others, at Woodstock, and many other venues and recordings.

We decided to run the amp with about 600V plates, and 300V screens, with oversized and extremely well regulated power transformer, into about 5K ohms output transformer.

Of importance is biasing the amp cold, at about 25mA, for class B operation, which is essential for the tone. We have also added a post PI master volume, as we realize that the opportunity playing full tilt with such powerful amp is not common, these days.

Whether you are a die hard Hendrix fan, or just a guitarist looking for great, inspiring tone, the amp will definitely deliver.

Head Dimension : 25.75 x 8.85 x 10.35 inches / Actual Weight : 25 kg

YouTube Video Thumbnail
West Coast Mod 100 - Clip 1
Specifications
Power Output
100++ Watt
Feature Overview
TBA
Tubes
  • Power: 6550 x 4
  • Preamp: 12AX7 x 2, 12AT7 x 1 (phase inverter)
  • Rectifier: Solid State
  • Complete Amp
    Head
    Complete Head Unit
    $ 1,750.00
    27.0 KG
    Full working chassis in head cabinet.
    Options
    Without tubes
    $ 1,460.00
    27.0 KG
    Full working chassis without tubes in head cabinet
    Without head cabinet
    $ 1,565.00
    22.0 KG
    Full working chassis without head cabinet
    Without head cabinet and tubes
    $ 1,275.00
    22.0 KG
    Full working chassis without tubes and head cabinet
    Kits
    British Style West Coast Mod JH Kits
    Package 1
    $ 500.00
    8.0 KG
    All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no choke, no tubes and no cabinet.
    Package 2
    $ 800.00
    22.0 KG
    All components with unassembled board, front plate, rear plate, chassis, OT, PT and choke. No tubes and no cabinet.
    Package 1 with assembly
    $ 975.00
    8.0 KG
    All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no choke, no tubes and no cabinet.
    Add-On/Parts
    Board
    Unassembled board
    $ 120.00
    2.5 KG
    Cabinet
    Head
    $ 185.00
    21.0 KG
    Weight is for empty head cabinet only
    Chassis
    Steel
    $ 75.00
    4.5 KG
    Laser Punched Steel, Thickness 1.5 mm
    Faceplate
    Front plate
    $ 28.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Rear plate
    $ 28.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Trannies
    Power & output trans & choke
    $ 300.00
    14.0 KG
    Tubes
    2 x 12AX7, 1 x 12AT7, 4 x 6550
    $ 290.00
    3.5 KG
    Documentation
    Layout
    British Style West Coast Mod JH Layout
    British Style West Coast Mod JH Manual

    Layout

    British Style West Coast Mod JH Layout

    British Style West Coast Mod JH Manual
