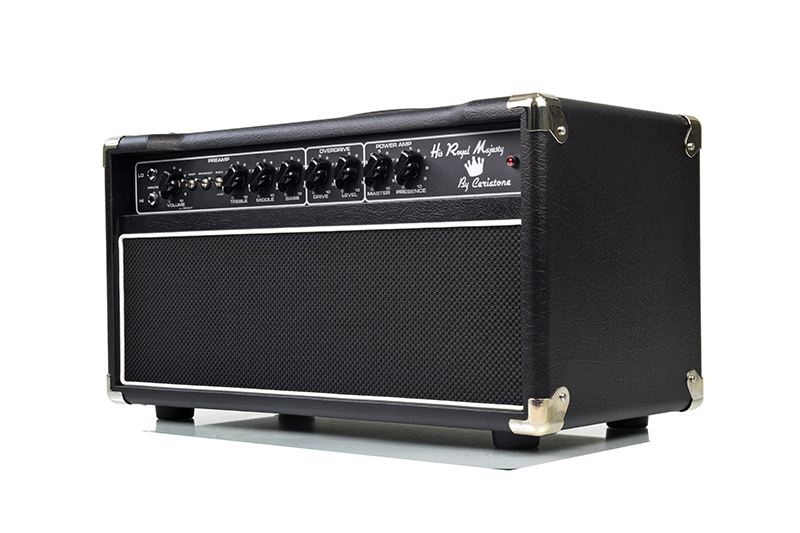

Overtone HRM 100

  • $ 1,725.00

Model Descriptions:

The Ceriatone Overtone Special HRM 100 is another unique Ceriatone perspective on classic American high-gain tone.

The Overtone Special HRM is a version of a particular circuit iteration.  These amps are commonly referred to as “HRM”, which is a tip of the hat to hot-rodded British guitar tones.

HRM amps have an internal adjustable tonestack (treble, middle, bass) for the overdrive channel.  This allows the player to fine tune gain tone to their liking.  Also unique to the HRM amplifier, each channel has it’s own independent Master Volume control.

These amplifiers generally sound more aggressive than their non-HRM counterparts, especially when the Preamp Boost is engaged.

Like other OTS amps, we have labored carefully to select the finest components to suit the design.  As with all Ceriatone amplifiers, it uses our specially designed, custom transformers for superior reliability, frequency response, and feel.

Head Dimension : 21 x 10.5 x 11.35 inches / Actual weight = 26kg

Head With C-lator Dimension : 21 x 10.5 x 11.35 inches / Actual weight = 29kg

Combo 1×12 Dimension : 21 x 10.5 x 22.75 inches / Actual Weight  Sans Speaker =

YouTube Video Thumbnail
Overtone HRM 100 - Clip 1
YouTube Video Thumbnail
Overtone HRM 100 with C-lator - Clip 2
YouTube Video Thumbnail
Overtone HRM 100 (HRM vs Non-HRM) - Clip 3
Specifications
Power Output
100 Watt
Feature Overview
  • Hi and Lo Inputs
  • Push-pull Bright switch on Gain control
  • Mid-boost, Deep, and Rock/Jazz toggle switches
  • Treble, Middle, Bass equalization (shared between channels)
  • Overdrive channel with Drive and Level controls
  • Internal Treble, Middle, Bass tonestack trimmers (overdrive channel)
  • Separate Master Volume controls for each channel
  • Footswitch (Channel and Preamp Boost)
  • Rear panel OD Trim (fine tunes response of overdrive channel)
  • Passive effects loop
  • Full/Half Power switch
  • Tubes
  • Power : 4 x 6L6GC
  • Preamp : 3 x 12AX7/ECC83
  • Rectifier : Solid State
  • Complete Amp
    Head
    Complete Head Unit
    $ 1,725.00
    27.0 KG
    Full working chassis in head cabinet. Footswitch included
    Options
    Without tubes
    $ 1,545.00
    27.0 KG
    Full working chassis without tubes in head cabinet. Footswitch included
    Without head cabinet
    $ 1,505.00
    20.0 KG
    Full working chassis without head cabinet. Footswitch included
    Without head cabinet and tubes
    $ 1,325.00
    20.0 KG
    Full working chassis without tubes and head cabinet. Footswitch included
    Complete Head Unit with Clator Built In
    $ 2,050.00
    30.0 KG
    Full working chassis in head cabinet with C-lator built in. Footswitch included
    Combo
    Complete Combo 1x12 Unit
    $ 1,780.00
    35.0 KG
    Full working chassis in combo 1x12 cabinet, sans speaker. Email us to enquire on speaker choice.
    Kits
    Overtone HRM 100 Kits
    Package 1
    $ 650.00
    8.0 KG
    All components with assembled board, faceplate, and chassis. Only OT, PT, choke, tubes and head cabinet not included. Footswitch included.
    Package 2
    $ 925.00
    20.0 KG
    All components with assembled board, faceplate, chassis, choke, OT and PT . Only tubes and head cabinet not included. Footswitch included.
    Package 1 with assembly
    $ 1,050.00
    8.0 KG
    All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no choke, no tubes and no cabinet. Footswitch included.
    Add-On/Parts
    Board
    Assembled board
    $ 250.00
    3.5 KG
    Eyeleted, Sprague PS caps, RN65D and CF resistors, Teflon wired
    Cabinet
    Head
    $ 220.00
    22.0 KG
    Weight is for empty head cabinet only.Option to include C-lator cut out.
    Combo 1 x 12 cabinet
    $ 275.00
    35.0 KG
    Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.
    Chassis
    Steel
    $ 75.00
    4.5 KG
    Laser Punched Steel, Thickness 1.5 mm
    Faceplate
    Front plate
    $ 28.00
    1.5 KG
    Polycarbonate/vinyl type faceplate, black color.
    Rear plate
    $ 28.00
    1.5 KG
    Polycarbonate/vinyl type faceplate, black color.
    Trannies
    Power & output trans & choke
    $ 275.00
    14.0 KG
    Tubes
    3 x 12AX7, 4 x 6L6GC
    $ 180.00
    3.5 KG
    Documentation
    Layout
    Overtone HRM 100W
    Overtone HRM 100W
    Manual
    Overtone HRM 100W
    Overtone HRM 100W

    Layout

    Overtone HRM 100W

    Manual

    Overtone HRM 100W

    Other Products

    British Style 36W

    $ 1,275.00
    ,

    TW Clone LiverPull

    $ 1,220.00
    ,

    Hot Rodded Plexi Leviathan 50

    $ 1,600.00
    ,

    Overtone Tweedle Dee

    $ 845.00
    ,
