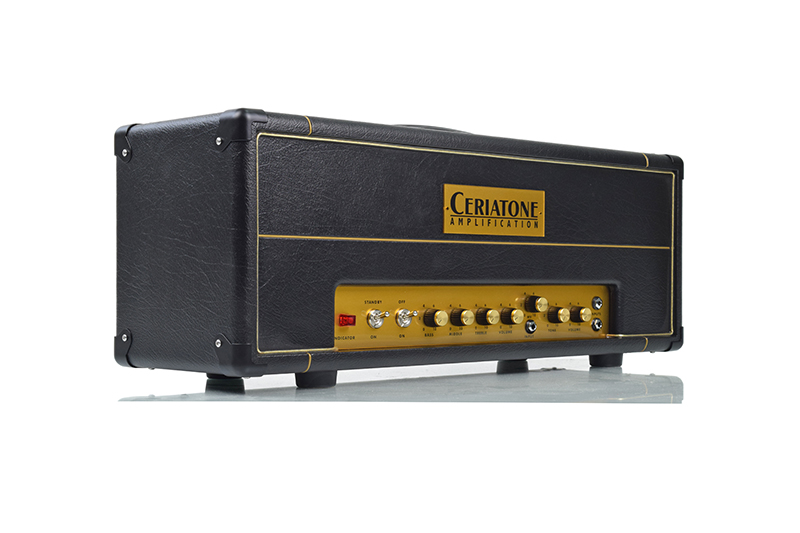

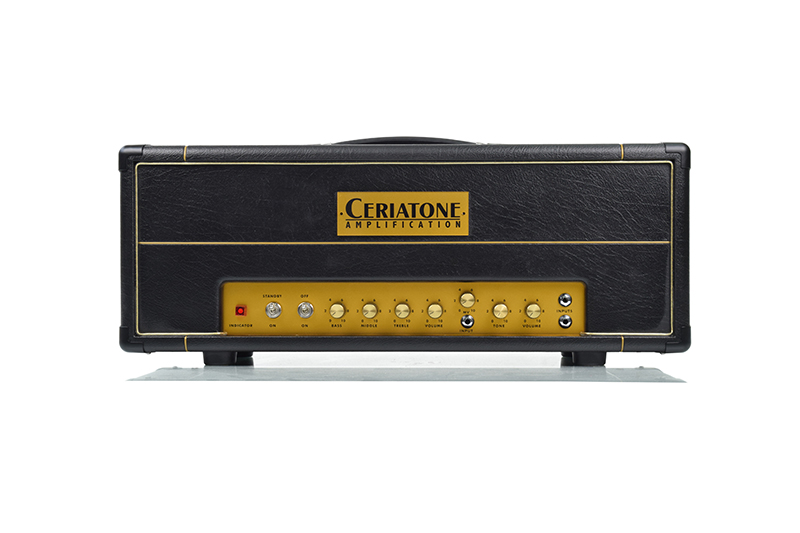

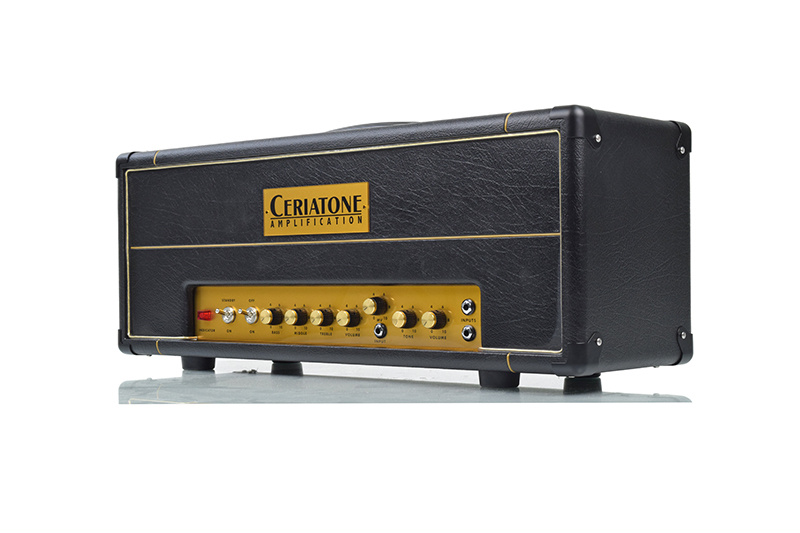

British Style 18W TMB EF86

  • $ 1,105.00

Model Descriptions:

The Ceriatone 18W TMB EF86 is the most feature-laden offering in the 18W platform.  The 18W TMB EF86 replaces the “Normal” channel with the EF86 channel seen in famous British guitar amplifiers.

The EF86 channel is known for it’s incredible clarity and balance across the fingerboard.  Because of the high headroom of the EF86 preamp tube, this channel responds particularly well to pedals.

The TMB channel features a preamp somewhat similar to a Plexi50 or Plexi100, but with special care in matching it’s voice to the unique EL84/EZ81 power section.  Some of our favorite rock tones of ANY of our amplifiers are in the TMB channel.  As an added bonus, we incorporated a master volume for this channel only.

Unlike the standard 18W, this chassis is suitable for both head and combo formats.

Like other Ceriatone amps, we have labored carefully to select the finest components to suit the design, and the 18W uses our specially designed, custom transformers for superior reliability, frequency response, and feel.

Head Dimension : 25.75 x 8.35 x 10.35 inches / Actual Weight : 16 kg

Combo 1×12 Dimension : 24 x 10.5 x 21 inches / Actual Weight Sans Speaker : 20kg

Combo 2×12 Dimension: 28 x 10.5  x  21 inches / Actual Weight Sans Speakers:

Specifications
Power Output
18 Watt
Feature Overview
  • Dual channel (EF86, TMB)
  • EF86 channel with dual inputs (high, low gain)
  • EF86 channel controls: Volume and Tone (6-way rotary switch)
  • “TMB” channel controls: Treble, Middle, Bass, and Master Volume
  • Tubes
  • Power: 2 x EL84
  • Preamp: 3 x 12AX7/ECC83, 1 x EF86
  • Rectifier: EZ81
  • Complete Amp
    Head
    Complete Head Unit
    $ 1,105.00
    23.0 KG
    Full working chassis in head cabinet.
    Options
    Without tubes
    $ 965.00
    23.0 KG
    Full working chassis without tubes in head cabinet
    Without head cabinet
    $ 920.00
    12.0 KG
    Full working chassis without head cabinet
    Without head cabinet and tubes
    $ 780.00
    12.0 KG
    Full working chassis without tubes and head cabinet
    Combo
    Complete Combo 1x12 Unit
    $ 1,170.00
    35.0 KG
    Full working chassis in combo 1x12 cabinet, sans speaker. Email us to enquire on speaker choice.
    Complete Combo 2x12 Unit
    $ 1,195.00
    59.0 KG
    Full working chassis in combo 2x12 cabinet, sans speakers. Email us to enquire on speaker choice.
    Kits
    Package 1
    Head/Combo
    $ 420.00
    5.0 KG
    All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no tubes and no cabinet.
    Package 2
    Head/Combo
    $ 540.00
    12.0 KG
    All components with unassembled board, front plate, rear plate, chassis, OT and PT. No tubes and no cabinet.
    Package 1 with assembly
    Head/Combo
    $ 660.00
    7.0 KG
    All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no tubes and no cabinet.
    Add-On/Parts
    Board
    Unassembled board
    $ 120.00
    2.5 KG
    Cabinet
    Head
    $ 185.00
    21.0 KG
    Weight is for empty head cabinet only
    Combo 1 x 12 cabinet
    $ 250.00
    35.0 KG
    Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.
    Combo 2 x 12 cabinet
    $ 275.00
    59.0 KG
    Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.
    Chassis
    Aluminum (head / combo)
    $ 75.00
    4.0 KG
    Laser Punched Alum, Thickness 2.0 mm
    Faceplate
    Front plate
    $ 28.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Rear plate
    $ 28.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Trannies
    Power & output trans
    $ 120.00
    6.5 KG
    Tubes
    3 x 12AX7, 2 x EL84, 1 x EZ81, 1 x EF86
    $ 140.00
    3.5 KG
    Documentation
    Layout
    British Style 18 Watt TMB EF86

    Layout

    British Style 18 Watt TMB EF86
