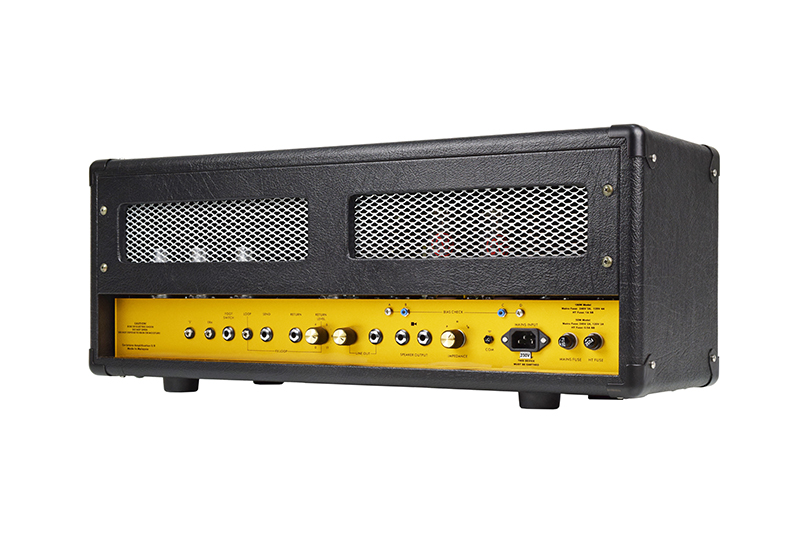

Hot Rodded Plexi AH Deluxe 50

  • $ 1600.00
Specifications
Power Output
  • 50 Watt
  • Feature Overview
  • Channel Switching amp with Clean and 2 Gain Channels (OD + HOD)
  • Clean Channel: Volume, Treble, Middle, Bass, and Bright Switch

  • Gain Channels (Shared EQ):
  • OD Channel: Gain, Treble, Middle, Bass, Master Volume
  • HOD Channel: Gain, Treble, Middle, Bass, Master Volume
  • Multiple tone shaping controls: “Voice”, “Structure”, “Thick”, “S”, “Era”

  • Global NFB, Resonance Controls
  • Series Buffered Loop with Return Level
  • Line Out Jack with Level control
  • Hand Wired on Turret Board with the best components
  • DC heaters for low noise floor
  • Tubes
  • Power: 2 x EL34
  • Preamp: 4 x 12AX7/ECC83
  • Rectifier: Solid State
  • Complete Amp
    Head
    Complete Head Unit
    $ 1,600.00
    26.0 KG
    Full working chassis in head cabinet. Footswitch included.
    Options
    Without Tubes
    $ 1,460.00
    26.0 KG
    Full working chassis without tubes in head cabinet. Footswitch included.
    Without head cabinet
    $ 1,380.00
    21.0 KG
    Full working chassis without head cabinet. Footswitch included.
    Without head cabinet and tubes
    $ 1,240.00
    21.0 KG
    Full working chassis without tubes and head cabinet. Footswitch included.
    Kits
    AHD 50 Kits
    Package 1
    $ 600.00
    10.0 KG
    All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no choke, no tubes and no cabinet. Footswitch included.
    Package 2
    $ 840.00
    21.0 KG
    All components with unassembled board, front plate, rear plate, chassis, choke, OT and PT. No tubes and no cabinet. Footswitch included.
    Package 1 with assembly
    $ 1,000.00
    10.0 KG
    All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no choke, no tubes and no cabinet. Footswitch included.
    Add-On/Parts
    Board
    Unassembled board
    $ 250.00
    2.5 KG
    Cabinet
    Head
    $ 220.00
    22.0 KG
    Weight is for empty head cabinet only
    Chassis
    Steel
    $ 75.00
    6.0 KG
    Laser Punched
    Faceplate
    Front plate
    $ 28.00
    1.5 KG
    Back Plate
    $ 28.00
    1.5 KG
    Trannies
    Power & Output Trans & Choke
    $ 240.00
    13.0 KG
    Tubes
    EL34 x 2, 12AX7 x 4
    $ 140.00
    2.5 KG
    Documentation
    Layout
    AH Deluxe 50 Layout
    AH Deluxe 50 Manual
    Manual
    AH Deluxe 50 Layout
    AH Deluxe 50 Manual

    Layout

    AH Deluxe 50 Layout

    Manual

    AH Deluxe 50 Manual
