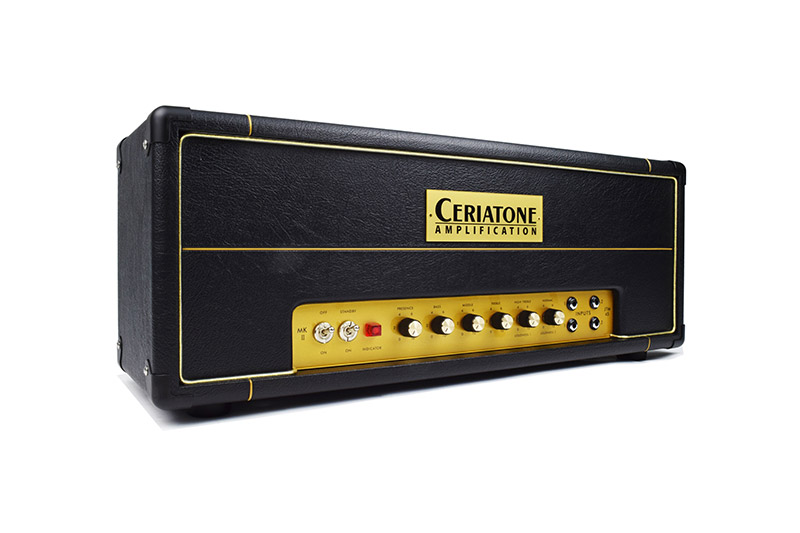

British Style JTM45

Model Descriptions:

The design that started it all….

The Ceriatone JTM45 is yet another amplifier drenched in vintage blues, blues rock, classic rock, and about-anything-you-want-to-throw-at-it goodness.

Sweet, bubbly and full cleans? Check. Seamless transition from clean to overdriven tones? Check. Highly responsive to different guitars, pickups, pedals, even tubes? Check. For many, the JTM45 is a deserted island amplifier. If you’ve played one, you surely agree. If you haven’t, well, fix that NOW.

Like other Ceriatone amps, we have labored carefully to select the finest components to suit the design, and the JTM45 uses our specially designed, custom transformers for superior reliability, frequency response, and feel.

Head Dimension : 25.75 x 8.35 x 10.35 inches / Actual Weight : 20kg

Combo 1×12 Dimension : 24 x 10.5 x 21 inches / Actual Weight Sans Speaker : 25 kg

Combo 2×12 Dimension : 28 x 10.5 x 21 inches / Actual Weight Sans Speakers:

British Style JTM45 - Clip 1

British Style JTM45 - Clip 2

British Style JTM45 - Clip 3

British Style JTM45 - Clip 4

Specifications

Power Output

35 Watt

Feature Overview

Dual channel (Bright, Normal) with dual inputs (high, low gain)

Channel Volume controls

Treble, Middle, Bass equalization

Presence control

Passive effects loop

Full/Half Power switch

External bias probe jacks and bias adjustment

Tubes

Power: 2 x KT66

Preamp: 3 x 12AX7/ECC83

Rectifier: GZ34/5AR4

Complete Amp

Head

Complete Head Unit

$ 1,445.00

23.0 KG

Full working chassis in head cabinet.

Options

Without tubes

$ 1,230.00

23.0 KG

Full working chassis without tubes in head cabinet

Without head cabinet

$ 1,245.00

16.0 KG

Full working chassis without head cabinet

Without head cabinet and tubes

$ 1,030.00

16.0 KG

Full working chassis without tubes and head cabinet

Combo

Complete Combo 1x12 Unit

$ 1,495.00

35.0 KG

Full working chassis in combo 1x12 cabinet, sans speaker. Email us to enquire on speaker choice.

Complete Combo 2x12 Unit

$ 1,520.00

59.0 KG

Full working chassis in combo 2x12 cabinet, sans speakers. Email us to enquire on speaker choice

Kits

British Style JTM45 Kits

Package 1

$ 500.00

5.0 KG

All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no choke, no tubes and no cabinet.

Package 2

$ 730.00

16.0 KG

All components with unassembled board, front plate, rear plate, chassis, OT, PT and choke. No tubes and no cabinet.

Package 1 with assembly

$ 800.00

7.0 KG

All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no choke, no tubes and no cabinet.

Add-On/Parts

Board

Unassembled board

$ 140.00

2.5 KG

Cabinet

Head

$ 200.00

21.0 KG

Weight is for empty head cabinet only

Combo 1 x 12 cabinet

$ 250.00

35.0 KG

Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.

Combo 2 x 12 cabinet

$ 275.00

59.0 KG

Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.

Chassis

Steel

$ 80.00

4.0 KG

Laser Punched Steel, Thickness 1.5 mm

Faceplate

Front plate

$ 30.00

1.5 KG

Plexi/Acrylic, Reversed Silk Screened

Rear plate

$ 30.00

1.5 KG

Plexi/Acrylic, Reversed Silk Screened

Trannies

Power & output trans & choke

$ 230.00

10.5 KG

Tubes

3 x 12AX7, 2 x KT66, 1 x GZ34

$ 215.00

3.5 KG

Documentation

Layout

British Style JTM 45

Download

British Style JTM 45

Download

Manual

British Style JTM 45

Download

British Style JTM 45

Download

Layout

British Style JTM 45

Download

Manual

British Style JTM 45

Download
