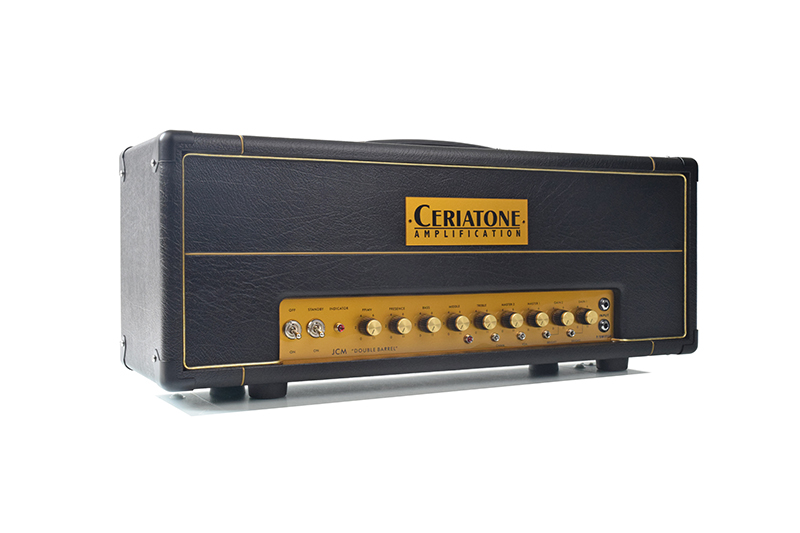

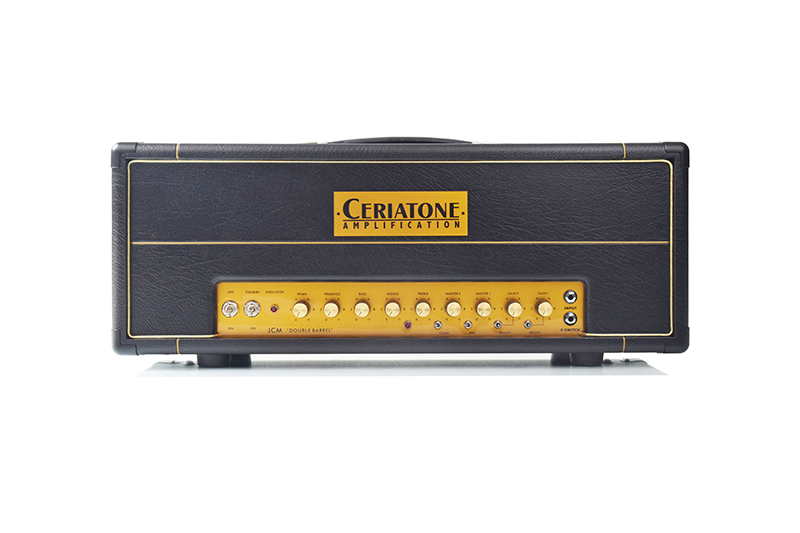

British Style JCM52 All Access

  • $ 1,340.00

Model Descriptions:

The most flexible JCM style amp available in the market today!

The JCM52 All Access allows you to have a multi channel JCM800 style amp, controlable with a footswitch!

Essentially, there are 2 sets of Gains and Master Volumes controls, each with its own Bright Switch, allowing you to have 2 presets for the amp.

So now you can set the 1 side to be Clean, while the other can perhaps be for your Crunch or High Gain Channel.

The Gain+ Switch allows you to kick in extra gain.

V2A switch affects both channels, as it selects a bypass cap on the cathode follower stage of the amp.

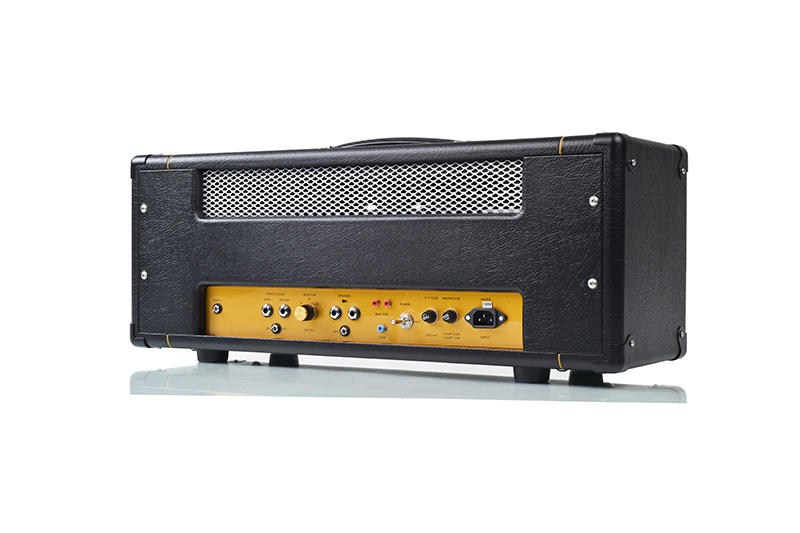

Other features include Post PI Master Volume (PPIMV), global Negative Feedback Switch, as well as a transparent Solid State Buffered Effects Loop.

Comes with high quality components, as is always with Ceriatone products, and and hand wired on turret boards just like originals!

Head Dimension : 25.75 x 8.35 x 10.35 inches / Actual Weight : 20.0 kg

YouTube Video Thumbnail
JCM52 All Access - Clip 1
Specifications
Power Output
50 Watt
Complete Amp
Head
Complete Head Unit
$ 1,340.00
25.0 KG
Full working chassis in head cabinet. Footswitch included.
Options
Without tubes
$ 1,195.00
25.0 KG
Full working chassis without tubes in head cabinet. Footswitch included.
Without head cabinet
$ 1,155.00
16.0 KG
Full working chassis without head cabinet. Footswitch included.
Without head cabinet and tubes
$ 1,010.00
16.0 KG
Full working chassis without tubes and head cabinet. Footswitch included.
Combo
Complete Combo 1x12 Unit
$ 1,405.00
35.0 KG
Full working chassis in combo 1x12 cabinet, sans speaker. Email us to enquire on speaker choice.. Footswitch included.
Complete Combo 2x12 Unit
$ 1,430.00
59.0 KG
Full working chassis in combo 2x12 cabinet, sans speaker. Email us to enquire on speaker choice.. Footswitch included.
Kits
British Style JMC52 All Access Kits
Package 1
$ 490.00
6.0 KG
All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no choke, no tubes and no cabinet. Footswitch included.
Package 2
$ 710.00
16.0 KG
All components with unassembled board, front plate, rear plate, chassis, OT, PT and choke. No tubes and no cabinet. Footswitch included.
Package 1 with assembly
$ 790.00
8.0 KG
All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no choke, no tubes and no cabinet. Footswitch included.
Add-On/Parts
Board
Unassembled board
$ 130.00
2.5 KG
Cabinet
Head
$ 185.00
21.0 KG
Weight is for empty head cabinet only
Combo 1 x 12 cabinet
$ 250.00
35.0 KG
Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.
Combo 2 x 12 cabinet
$ 275.00
59.0 KG
Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.
Chassis
Steel
$ 75.00
4.0 KG
Laser Punched Steel, Thickness 1.5 mm
Faceplate
Front plate
$ 28.00
1.5 KG
Plexi/Acrylic, Reversed Silk Screened
Rear plate
$ 28.00
1.5 KG
Plexi/Acrylic, Reversed Silk Screened
Trannies
Power & output trans & choke
$ 220.00
10.5 KG
Tubes
3 x 12AX7, 2 x EL34
$ 145.00
4.0 KG
Documentation
Layout
JCM52 All Access Layout
JCM52 All Access Manual
Manual
JCM52 All Access Layout
JCM52 All Access Manual

Layout

JCM52 All Access Layout

Manual

JCM52 All Access Manual
