British Style JCM51 All Access

  • $ 1,415.00

Model Descriptions:

Have you ever laid down in bed, dreaming that you have both Plexi and JCM800 amps, and that’d just make your tone quest complete?

Good news! Here’s an amp that’d do both exactly!

The JCM51 All Access allows you to have the Plexi and JCM800 circuits in a single amp, and these channels are footswitchable.

The Plexi side is Bright Channel of a 60s Plexi, with its own (not shared) Volume control and Bright Switch.

The JCM800 side has its own Gain/master controls, with its own Bright Switch. On top of that, the Gain+ Switch allows you to kick in extra gain.

V2A switch affects both channels, as it selects a bypass cap on the cathode follower stage of the amp.

Other features include Post PI Master Volume (PPIMV), global Negative Feedback Switch, as well as a transparent Solid State Buffered Effects Loop.

Comes with high quality components, as is always with Ceriatone products, and and hand wired on turret boards just like originals!

Head Dimension : 25.75 x 8.35 x 10.35 inches / Actual Weight : 20.0 kg

YouTube Video Thumbnail
JCM51 All Access - Clip 1
Specifications
Power Output
50 Watt
Complete Amp
Head
Complete Head Unit
$ 1,415.00
25.0 KG
Full working chassis in head cabinet.
Options
Without tubes
$ 1,270.00
25.0 KG
Full working chassis without tubes in head cabinet. Footswitch included.
Without head cabinet
$ 1,215.00
16.0 KG
Full working chassis without head cabinet. Footswitch included.
Without head cabinet and tubes
$ 1,070.00
16.0 KG
Full working chassis without tubes and head cabinet. Footswitch included.
Combo

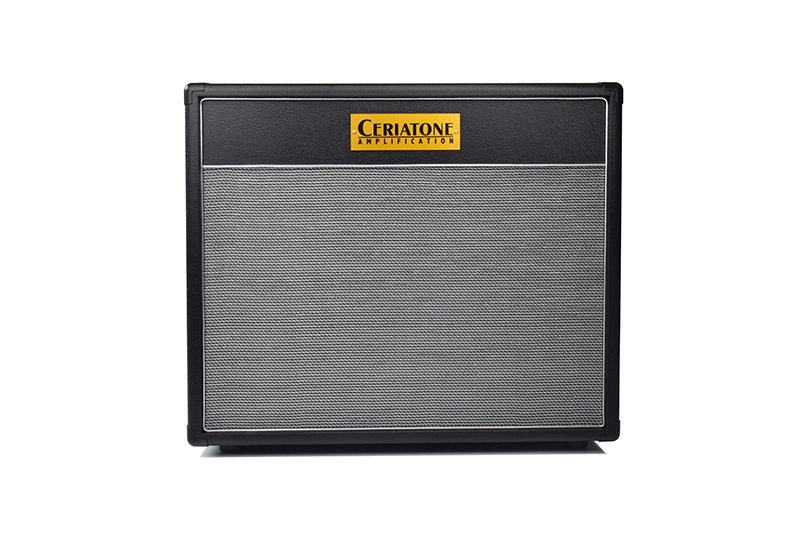

Complete Combo 1x12 Unit
$ 1,465.00
35.0 KG
Full working chassis in combo 1x12 cabinet, sans speaker. Email us to enquire on speaker choice. Footswitch included.
Complete Combo 2x12 Unit
$ 1,490.00
59.0 KG
Full working chassis in combo 2x12 cabinet, sans speaker. Email us to enquire on speaker choice. Footswitch included.
Kits
British Style JMC51 All Access Kits
Package 1
$ 520.00
6.0 KG
All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no choke, no tubes and no cabinet. Footswitch included.
Package 2
$ 750.00
16.0 KG
All components with unassembled board, front plate, rear plate, chassis, OT, PT and choke. No tubes and no cabinet. Footswitch included.
Package 1 with assembly
$ 840.00
8.0 KG
All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no choke, no tubes and no cabinet. Footswitch included.
Add-On/Parts
Board
Unassembled board
$ 140.00
2.5 KG
Cabinet
Head
$ 200.00
21.0 KG
Weight is for empty head cabinet only
Combo 1 x 12 cabinet
$ 250.00
35.0 KG
Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.
Combo 2 x 12 cabinet
$ 275.00
59.0 KG
Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.
Chassis
Steel
$ 80.00
4.0 KG
Laser Punched Steel, Thickness 1.5 mm
Faceplate
Front plate
$ 30.00
1.5 KG
Plexi/Acrylic, Reversed Silk Screened
Rear plate
$ 30.00
1.5 KG
Plexi/Acrylic, Reversed Silk Screened
Trannies
Power & output trans & choke
$ 230.00
10.5 KG
Tubes
3 x 12AX7, 2 x EL34
$ 145.00
4.0 KG
Documentation
Layout
JCM51 All Access Layout
JCM51 All Access Manual
Manual
JCM51 All Access Layout
JCM51 All Access Manual

Layout

JCM51 All Access Layout

Manual

JCM51 All Access Manual
