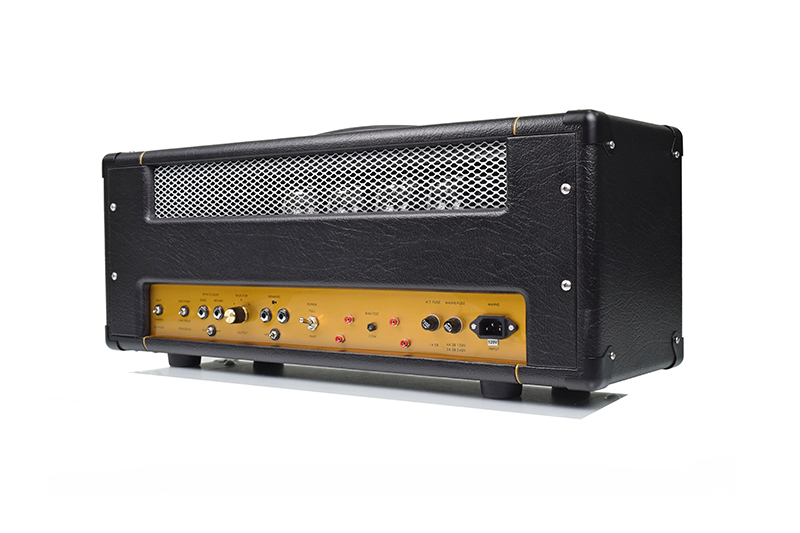

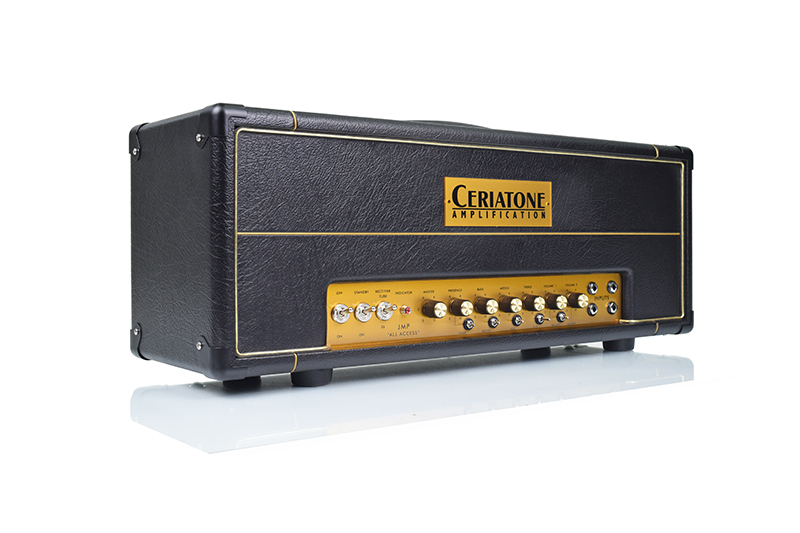

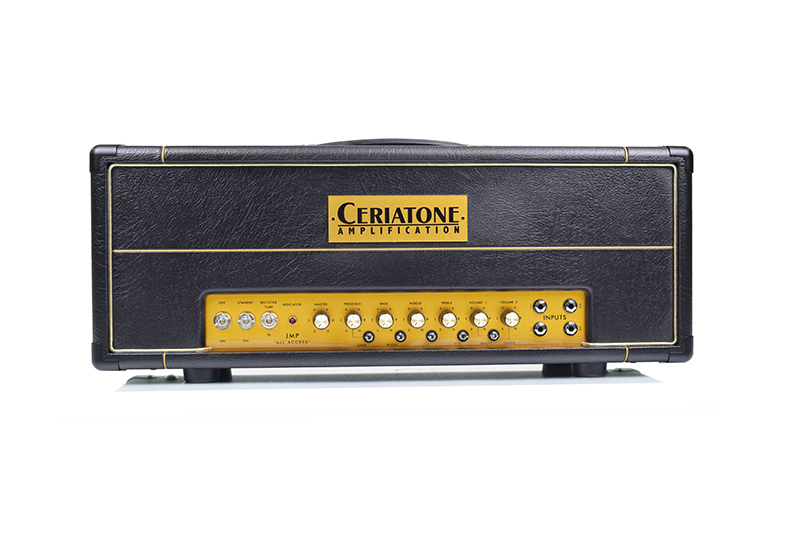

British Style JTM101 All Access

  • $ 1,690.00

Model Descriptions:

The success of our Plexi 51 and 101 All Access models made us consider to offer the “All Access” treatment to the sought after JTM45/100 amp

We did not have to consider for too long, as sure enough, emails looking for such came pouring in!

The JTM101 All Access bring excitement and versatility to the fabled circuit. Whether you want the circuit to be as original, or with the “Hendrix mods”, this amp can do it all, with just the flick of a few switches.

Not only that, other sought after mods that are usually done to this model are now easily accessible – JTM45/100 with 100K negative feedback resistor, and Shared V1 cathode? You got it!

How about 0.68uF Presence cap instead of 0.1uF, for more mids? Sure!

Tube rectification? Yes sir! Oh wait, that means you can also experience the very rare, very pricey, very sought after earliest iteration of the JTM45/100 circuit!

Modern features such as Post Phase Inverter Master Volume (PPIMV), and transparent Buffered Effects Loop make the Plexi 101 All Access or the Plexi51 All Access  the #1 choice of many discerning players who yearn for improvements to the classic circuit, but maintaining the essence of the sought after tones!

Comes with high quality components, as is always with Ceriatone products, and and hand wired on turret boards just like originals!

YouTube Video Thumbnail
Ceriatone JTM101 All Access - Clip 1
Specifications
Power Output
85
Tubes
  • Power: 4 x KT66
  • Preamp: 3 x 12AX7/ECC83
  • Rectifier: 2 x GZ34/5AR4
  • Complete Amp
    Head
    Complete Head Uni
    $ 1,690.00
    27.0 KG
    Full working chassis in head cabinet.
    Options
    Without tubes
    $ 1,320.00
    27.0 KG
    Full working chassis without tubes in head cabinet.
    Without head cabinet
    $ 1,490.00
    22.0 KG
    Full working chassis without head cabinet.
    Without head cabinet and tubes
    $ 1,120.00
    22.0 KG
    Full working chassis without tubes and head cabinet.
    Kits
    British Style JTM101 All Access Kits
    Package 1
    $ 520.00
    9.0 KG
    All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no choke, no tubes and no cabinet.
    Package 2
    $ 790.00
    22.0 KG
    All components with unassembled board, front plate, rear plate, chassis, OT, PT and choke. No tubes and no cabinet.
    Package 1 with assembly
    $ 850.00
    9.0 KG
    All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no choke, no tubes and no cabinet.
    Add-On/Parts
    Board
    Unassembled board
    $ 150.00
    2.5 KG
    Cabinet
    Head
    $ 200.00
    21.0 KG
    Weight is for empty head cabinet only
    Chassis
    Steel
    $ 80.00
    4.0 KG
    Laser Punched Steel, Thickness 1.5 mm
    Faceplate
    Front plate
    $ 30.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Rear plate
    $ 30.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Trannies
    Power & output trans & choke
    $ 270.00
    14.0 KG
    Tubes
    3 x 12AX7, 4 x KT66, 2 x GZ34
    $ 370.00
    5.0 KG
    Documentation
    Layout
    British Style JTM101 All Access

    Layout

    British Style JTM101 All Access
