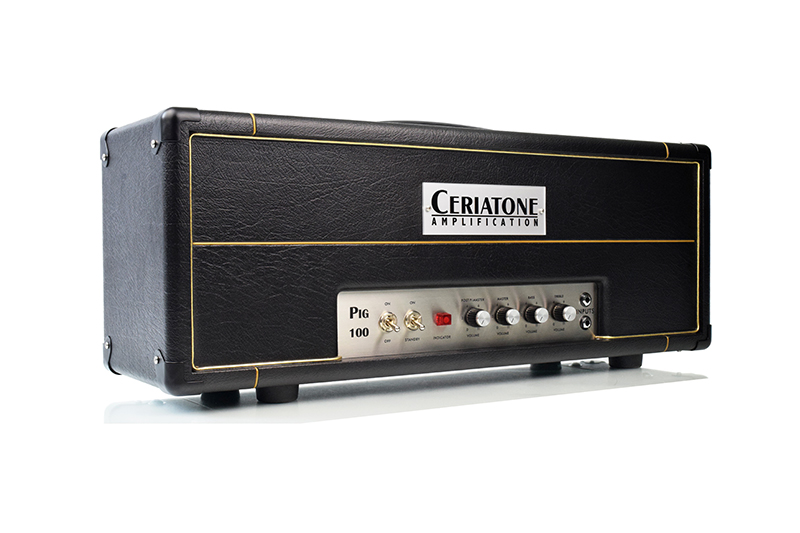

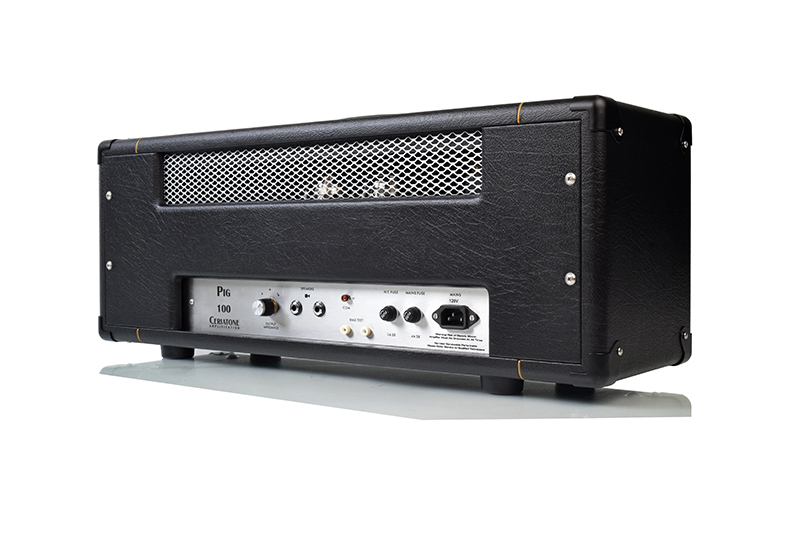

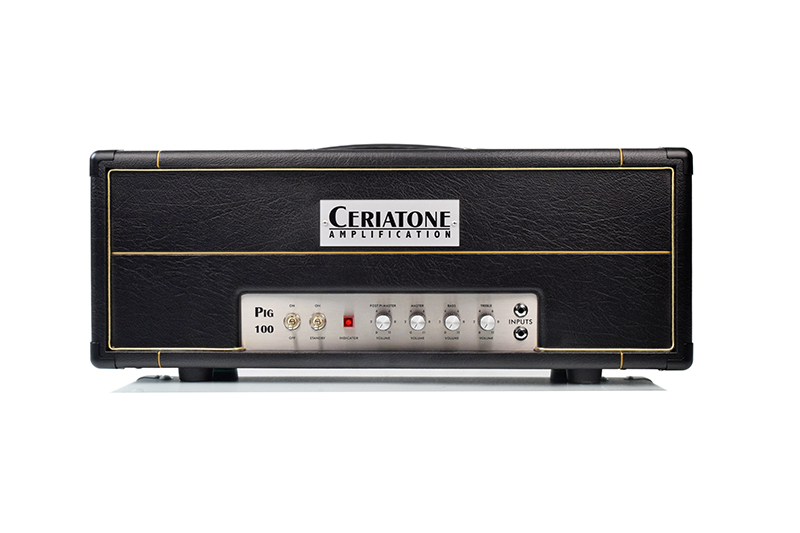

British Style Pig 100

  • $ 1,650.00

Model Descriptions:

In the late 60s, Marshall introduced a 200W amp, a foray into high powered amplification, demanded by increasing popularity of shows with large venues (High powered PA was not a thing back then).

The first 200W model sports only 3 control knobs – Treble Volume, Bass Volume, and Master Volume.

The preamp is unique, and reportedly was a design by GEC, the original maker of the KT88 tubes, which are used in the model.

The most famous user of the amp was Mick Ronson, guitarist for David Bowie, who nicknamed the amp “The Pig”, probably due to the snout-looking shape formed by the amp’s 3 controls.

The design was short lived, and reportedly, only 50 of The Pig were ever made. Marshall did continue with a 200W design, which is another legendary amp we all know as the “Marshall Major”.

Ceriatone is proud to offer a variant of The Pig. We try to stay as original as possible, to preserve the legacy of the amp, but at the same time, we also address certain concerns such as reliability, and also reality of current day playing – volume management.

The Ceriatone Pig 100 features same exact preamp as original, except:

1) Power

The Ceriatone Pig is 100W, instead of 200W of the original design.

We think 100W is more than enough to blast that modeler-playing guitarist off to the next state.

We can offer the 200W as a custom request – some are just born kings, we acknowledge that

2) PPIMV

The Post Phase Inverter Master Volume helps with volume management, which is an important factor these days.

With the knob turned up, it is totally bypassed, making for stock circuit.

3) V1A Cathode bypass capacitor switch

Some original Pigs have a cathode bypass capacitor at V1A, while other samples do not. With this switch, you can have it both ways!

4) Reliability

The original circuit runs very high voltages, at about 750V plates, and 550V screen, for the KT88s.

The legendary GEC KT88s might have been fine with such operating voltages (story is that they were not, thus the short life of the amp model), but these tubes are impossible to find now, and extremely pricey.

As such, we run the voltages lower, at 600V plates, and 300V screens, making for a more reliable amp, without sacrificing the tone.



Head Dimension : 26 x 8.25 x 10.50 inches / Actual Weight :25 kg

Combo 1×12 Dimension : 24 x 10.5 x 21 inches / Actual Weight Sans Speaker :

YouTube Video Thumbnail
British Style Pig 100 - Clip 1
Specifications
Power Output
100 Watt
Feature Overview
  • Legendary rare 60s "Pig"circuit
  • 100W for more manageable power (200W possible)
  • V1A cathode bypass capacitor switch
  • Post PI Master Volume
  • Safer operating voltages for power tubes
  • Oversized transformers
  • Bias jacks for easy biasing
  • Hand wired on turret boards with top quality components
  • Tubes
  • Power: 2 x KT88
  • Preamp:  3 x 12AX7/ECC83
  • Rectifier:  SS rectifier
  • Complete Amp
    Head
    Complete Head Unit
    $ 1,650.00
    27.0 KG
    Full working chassis in head cabinet.
    Options
    Without tubes
    $ 1,420.00
    27.0 KG
    Full working chassis without tubes in head cabinet
    Without head cabinet
    $ 1,420.00
    22.0 KG
    Full working chassis without head cabinet
    Without head cabinet and tubes
    $ 1,190.00
    22.0 KG
    Full working chassis without tubes and head cabinet
    Combo
    Complete Combo 1x12 Unit
    $ 1,670.00
    35.0 KG
    Full working chassis in combo 1x12 cabinet, sans speaker. Email us to enquire on speaker choice.
    Kits
    British Style Pig 100
    Package 1
    $ 530.00
    8.0 KG
    All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no choke, no tubes and no cabinet.
    Package 2
    $ 830.00
    22.0 KG
    All components with unassembled board, front plate, rear plate, chassis, OT, PT and choke. No tubes and no cabinet.
    Package 1 with assembly
    $ 890.00
    8.0 KG
    All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no choke, no tubes and no cabinet.
    Add-On/Parts
    Board
    Unassembled board
    $ 140.00
    2.5 KG
    Cabinet
    Head
    $ 230.00
    21.0 KG
    Weight is for empty head cabinet only
    Combo 1 x 12 cabinet
    $ 250.00
    35.0 KG
    Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.
    Chassis
    Steel
    $ 80.00
    4.5 KG
    Laser Punched Steel, Thickness 1.5 mm
    Faceplate
    Front plate
    $ 30.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Rear plate
    $ 30.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Trannies
    Power & output trans & choke
    $ 300.00
    14.0 KG
    Tubes
    KT88 x 2, ECC83 x 3
    $ 230.00
    3.5 KG
    Documentation
    Layout
    British Style Pig 100
    British Style Pig 100
    British Style Pig 100
    Manual
    British Style Pig 100
    British Style Pig 100
    British Style Pig 100
    Voltage Chart
    British Style Pig 100
    British Style Pig 100
    British Style Pig 100

    Layout

    British Style Pig 100

    Manual

    British Style Pig 100

    Voltage Chart

    British Style Pig 100
