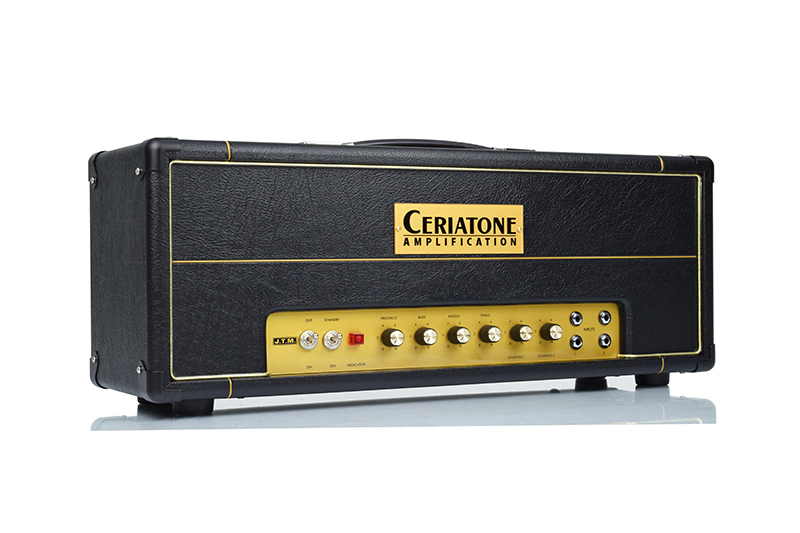

British Style JTM50

  • $ 1,270.00

Model Descriptions:

The Ceriatone JTM50 is a frequently misunderstood amplifier….

The JTM50 has a misnomer as “a JTM45 with EL34s”.  That is incorrect.  Some players confuse the “black flag” nickname with this amp being used by the seminal punk band fronted by Henry Rollins.  That is also incorrect.  Okay, nobody confuses that, but we love “Family Man” so much we can’t help but reference it.

The JTM50 “black flag” has aspects of a JTM45 and aspects of a Plexi50 Bass.  But it is neither.  For players looking for the sweetness of a JTM45, but with more midrange grind and a firmer bottom end, the JTM50 delivers in spades.  Because of the tube rectification, it has more sag and compression than a Plexi50 Bass.

Like other Ceriatone amps, we have labored carefully to select the finest components to suit the design, and the JTM45 Bluesbreaker uses our specially designed, custom transformers for superior reliability, frequency response, and feel.

Head Dimension : 25.75 x 8.35 x 10.35 inches / Actual Weight : 21 kg

Combo 1×12 Dimension : 24 x 10.5 x 21 inches / Actual Weight Sans Speaker :

Combo 2×12 Dimension : 28 x 10.5 x 21 inches / Actual Weight Sans Speakers :

Specifications
Power Output
50 Watt
Feature Overview
  • Dual channel (Bright, Normal) with dual inputs (high, low gain)
  • Channel Volume controls
  • Push-pull Bright switch on Bright Volume
  • Treble, Middle, Bass equalization
  • Presence control
  • Passive effects loop
  • Full/Half Power switch
  • External bias probe jacks and bias adjustment
  • Tubes
  • Power: 2 x EL34
  • Preamp: 3 x 12AX7/ECC83
  • Rectifier: GZ34/5AR4
  • Complete Amp
    Head
    Complete Head Unit
    $ 1,270.00
    23.0 KG
    Full working chassis in head cabinet.
    Options
    Without tubes
    $ 1,125.00
    23.0 KG
    Full working chassis without tubes in head cabinet
    Without head cabinet
    $ 1,085.00
    16.0 KG
    Full working chassis without head cabinet
    Without head cabinet and tubes
    $ 940.00
    16.0 KG
    Full working chassis without tubes and head cabinet
    Combo
    Complete Combo 1x12 Unit
    $ 1,335.00
    35.0 KG
    Full working chassis in combo 1x12 cabinet, sans speaker. Email us to enquire on speaker choice.
    Complete Combo 2x12 Unit
    $ 1,360.00
    59.0 KG
    Full working chassis in combo 2x12 cabinet, sans speakers. Email us to enquire on speaker choice.
    Kits
    British Style JTM50 Kits
    Package 1
    $ 450.00
    5.0 KG
    All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no choke, no tubes and no cabinet.
    Package 2
    $ 670.00
    16.0 KG
    All components with unassembled board, front plate, rear plate, chassis, OT, PT and choke. No tubes and no cabinet.
    Package 1 with assembly
    $ 720.00
    7.0 KG
    All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no choke, no tubes and no cabinet.
    Add-On/Parts
    Board
    Unassembled board
    $ 120.00
    2.5 KG
    Cabinet
    Head
    $ 185.00
    21.0 KG
    Weight is for empty head cabinet only
    Combo 1 x 12 cabinet
    $ 250.00
    35.0 KG
    Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.
    Combo 2 x 12 cabinet
    $ 275.00
    59.0 KG
    Price and weight is for empty combo cabinet, without speaker. Email us to enquire on speaker choice.
    Chassis
    Steel
    $ 75.00
    4.0 KG
    Laser Punched Steel, Thickness 1.5 mm
    Faceplate
    Front plate
    $ 28.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Rear plate
    $ 28.00
    1.5 KG
    Plexi/Acrylic, Reversed Silk Screened
    Trannies
    Power & output trans & choke
    $ 220.00
    10.5 KG
    Tubes
    3 x 12AX7, 2 x EL34, 1 x GZ34
    $ 145.00
    3.5 KG
    Documentation
    Layout
    British Style JTM 50
    British Style JTM 50
    Manual
    British Style JTM 50
    British Style JTM 50

    Layout

    British Style JTM 50

    Manual

    British Style JTM 50
